When developing a multi-million dollar water park, structural integrity and guest safety are paramount. The foundation of a reliable, high-throughput water slide doesn’t begin at the construction site, it begins in the manufacturing mold.
For decades, the industry relied heavily on manual processes and standard 3-axis cutting. However, as slide geometries become more complex and safety standards tighten, traditional methods fall short. This is why Dalang has heavily invested in European 5-axis CNC machining within our 100,000m2 intelligent manufacturing hub.
Here is a technical breakdown of what 5-axis CNC machining is, and why it is the driving force behind modern, high-ROI water park development.
What is 5-Axis CNC Machining in the Context of Aquatic Infrastructure?

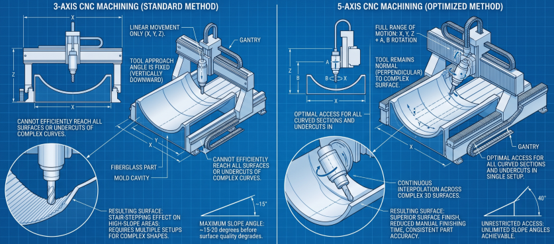

In standard CNC (Computer Numerical Control) machining, a cutting tool moves across three linear axes: X (left/right), Y (front/back), and Z (up/down). While sufficient for basic flat components, 3-axis machines struggle with the sweeping curves and deep undercuts required for advanced hydro slide designs.
5-axis CNC machining introduces two additional rotational axes (A and B). This allows the cutting spindle to tilt and rotate, approaching the workpiece from virtually any angle in a single, continuous setup.

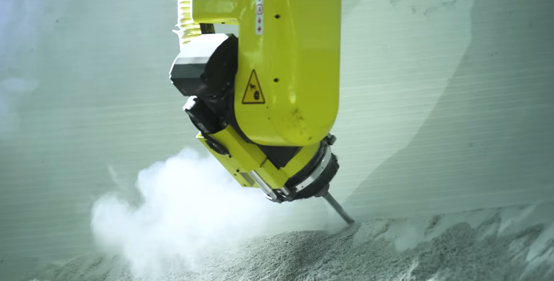

In fiberglass water slide manufacturing, this technology is primarily used to mill the master molds with microscopic precision, as well as to perform post-mold edge trimming and drilling on the final composite parts.
The continuous simultaneous movement ensures that complex, freeform geometries, like the intense curves of a Tornado or Bowl slide, are cut flawlessly without the need to manually reposition the mold.
Why Did Dalang Introduce 5-Axis CNC Machines for Water Slide Production?
In a word, we need product upgrade to cater to the stringent international safety and performance standards. But how will the introduction help with it?
Enabling Light Resin Transfer Molding (L-RTM)
The most significant advantage of 5-axis CNC mold making is that it serves as the foundation for Light Resin Transfer Molding (Light RTM / L-RTM). L-RTM is a closed-mold process where resin is injected under a vacuum between two tightly fitting molds.

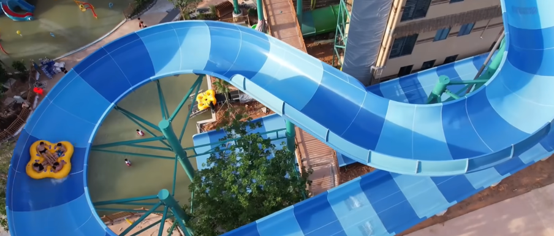

5-axis machining creates molds with zero-dimensional deviance, the resulting L-RTM fiberglass parts tend to feature a double-sided, glass-like smooth finish. This eliminates the rough, choppy exterior seen on older slides, offering a product with a superior strength-to-weight ratio, uniform thickness, and a premium aesthetic.
Eliminating Repositioning Errors and Accelerating Production
A large water slide mold is incredibly cumbersome. The old 3-axis machine requires constant pause to manually flip and recalibrate the mold multiple times. 5-axis machines eliminate this.
The automatic setup allows Dalang to reduce lead times for large-scale resort projects while minimizing human repositioning errors.
Guaranteeing Factory Acceptance Testing (FAT) Compliance
For international developers, Factory Acceptance Testing (FAT) is a critical milestone. 5-axis CNC machines utilize robust tool-holding systems (like HSK) that prevent vibration and runout, every single flume piece produced matches the exact CAD specifications.
This guarantees that when the slide arrives on-site, the joints align perfectly, which can eliminate dangerous misalignments and expediting the installation process.
Automated CNC Trimming for Long-Term Structural Integrity
The benefits of 5-axis CNC extend beyond the mold. When trimming and drilling the final cured plastic water slide material (fiberglass reinforced polymer), standard manual cutting can cause micro-fractures, burning, or delamination at the edges.
Dalang utilizes high-speed oscillating knife systems and diamond-coated tools on 5-axis heads to cut the fiberglass cleanly. This automated trimming ensures that the structural integrity of the composite material remains completely uncompromised.
For park operators, this means the slide joints fit tighter, reducing the friction that degrades the gel coat over time, and that tend to significantly extending the operational lifespan of the attraction.
FAQ
What is the difference between 3-axis and 5-axis CNC routing?
3-axis routers move linearly (up/down, left/right, front/back) and are limited to basic shapes. 5-axis routers add two rotational axes, allowing the cutting tool to tilt and maneuver around complex, curved 3D geometries in a single setup, making it essential for complex water slide molds.
Does CNC machining limit custom water slide designs?
The opposite is true. 5-axis CNC machining is what enables complex custom designs. Since the machine can follow the exact toolpaths generated by 3D CAD software, park designers have total freedom to create highly customized, extreme-angle slide paths that would be impossible to manufacture precisely by hand.
Can 5-axis CNC manufacturing reduce water park maintenance costs?
Yes. 5-axis machining produces the ultra-precise molds required for the L-RTM process. L-RTM fiberglass is significantly stronger, features a double-sided smooth finish that resists UV and chemical degradation better than traditional hand-laid fiberglass, and features perfectly aligned joints that reduce wear and tear on ride vehicles and the flume surface itself.
Partner With Dalang for Your Next Landmark Project
Backed by European 5-axis CNC technology and advanced L-RTM processes, Dalang delivers high-throughput aquatic attractions that meet rigorous global safety standards and maximize your investment ROI.
Contact our technical team today to discuss master planning, custom slide design, and turnkey manufacturing for your next resort project.
